Initialize CloudFormation Template
Initialize CloudFormatuon Templates
This step will detail how to create My VPC with CloudFormation Template. You can repeat this step to create more HG VPCs. A stack can take up to 5 minutes to complete initialization.
-
Method 1: First of all, we download CloudFormation Template to the computer.
-
Method 2: You can download Template
-
Login to AWS Management Console

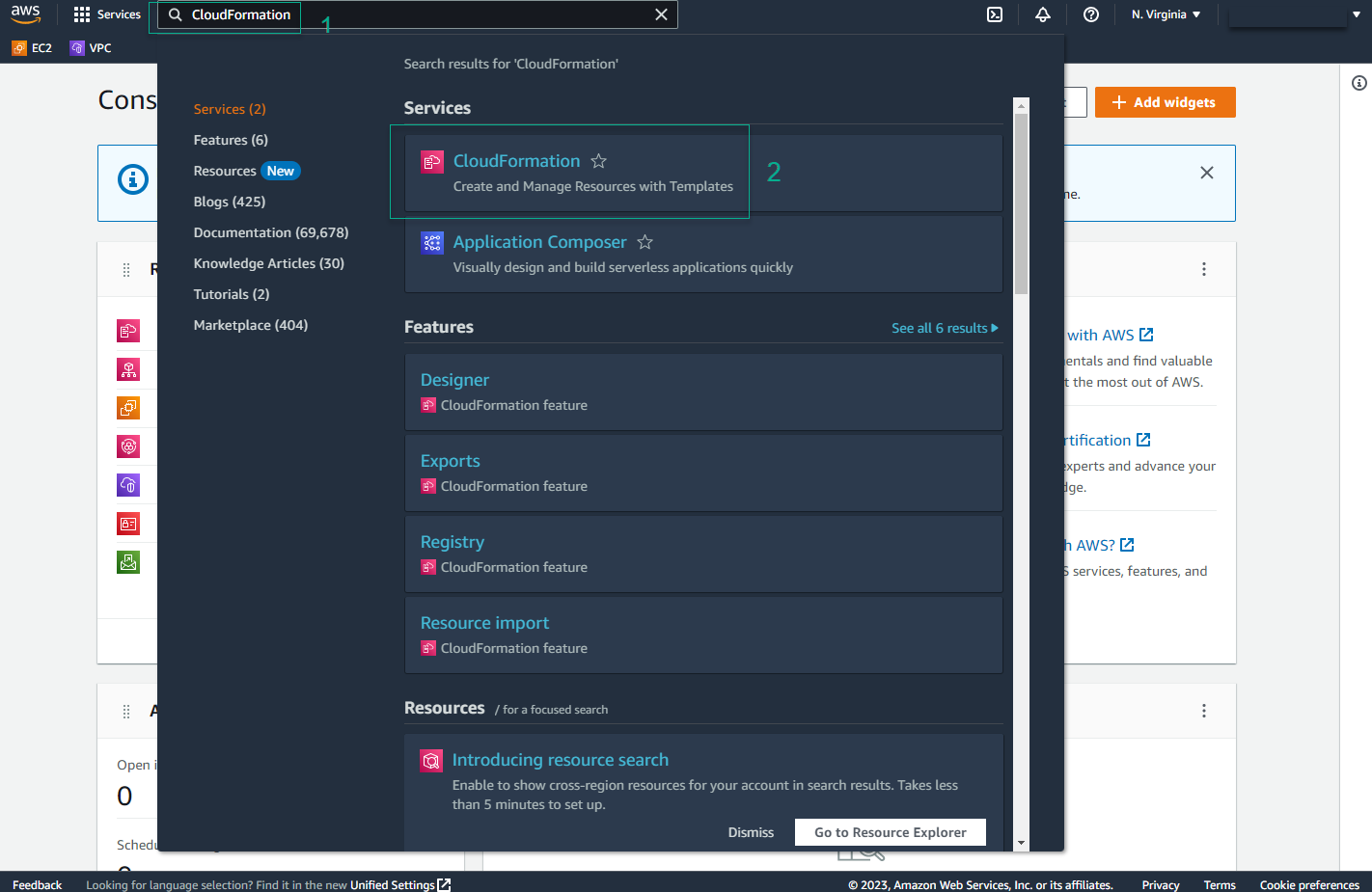

- Find CloudFormation
- Select CloudFormation

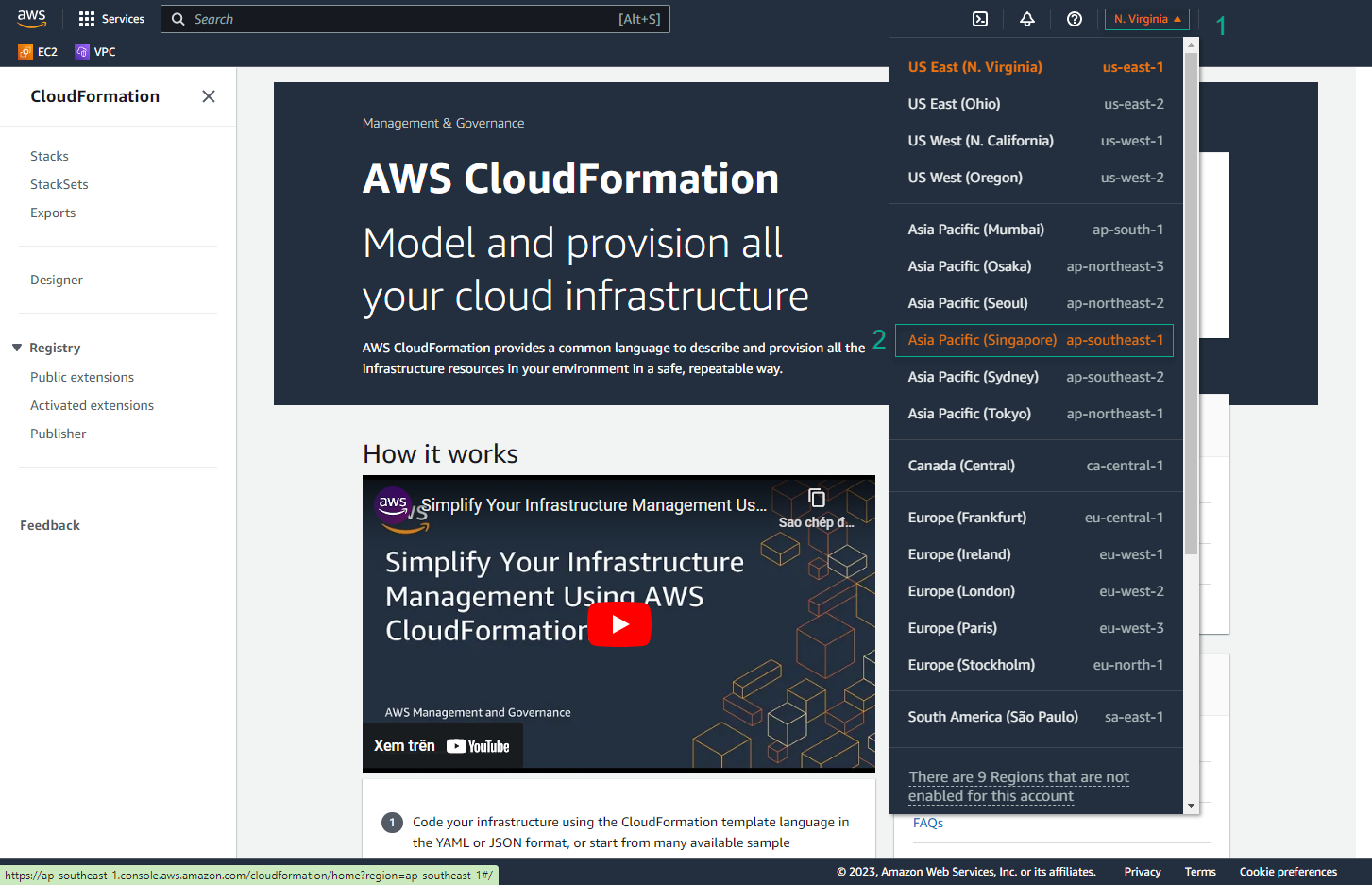

In this workshop, we will use the Singapore region (ap-southeast-1). If you want to use another Region, be sure to move the Region back to the Region you want to use when creating workshop-related resources.

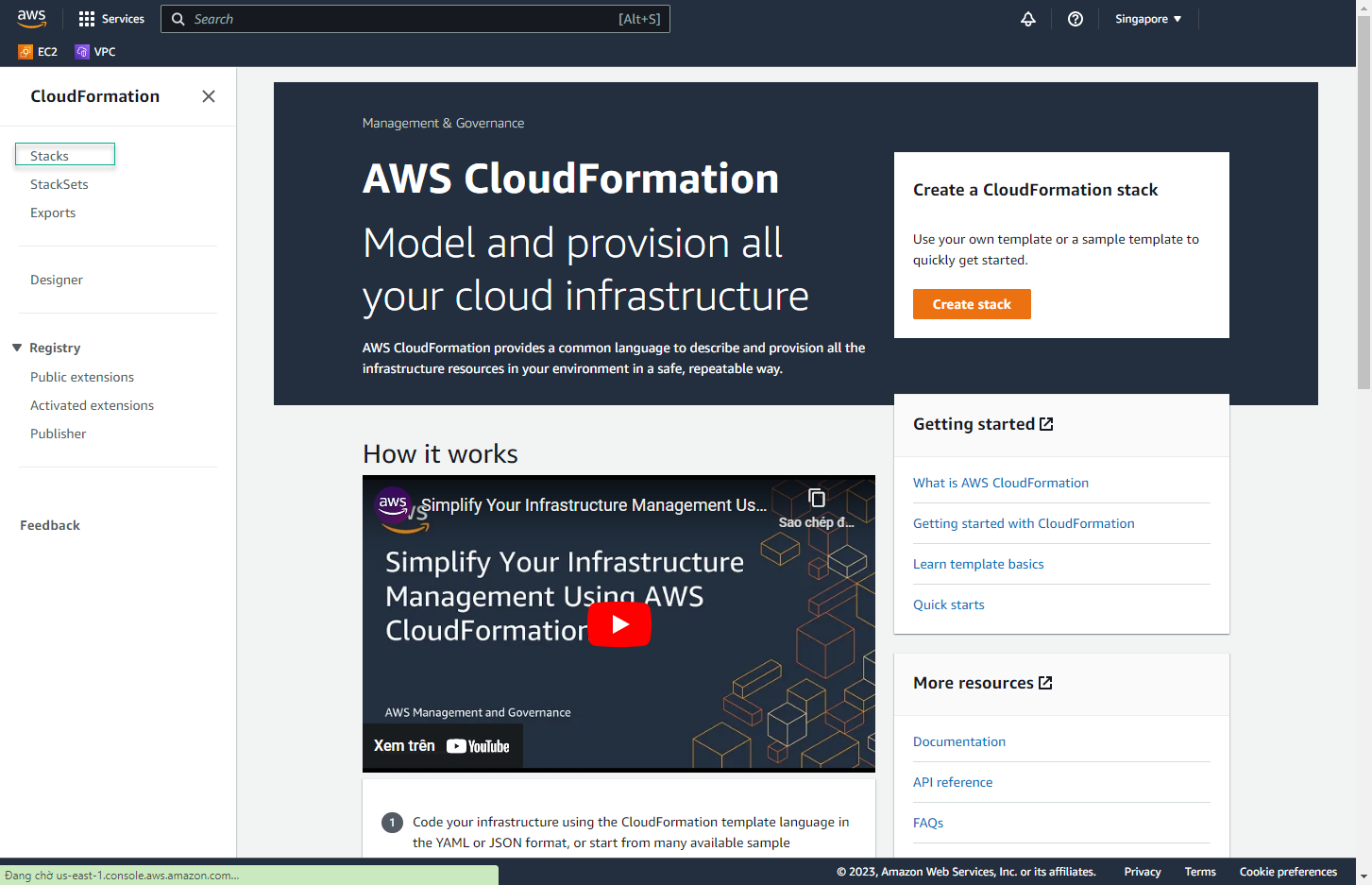

- In the CloudFormation interface, select Stack

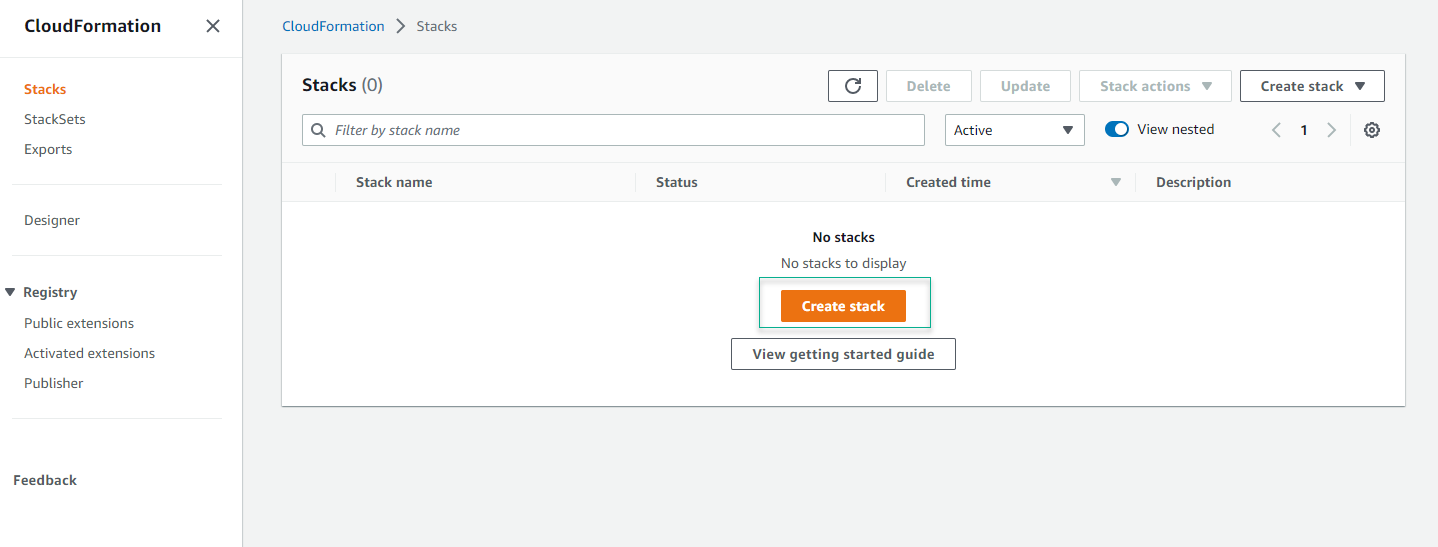

- In the Stack interface, select Create stack

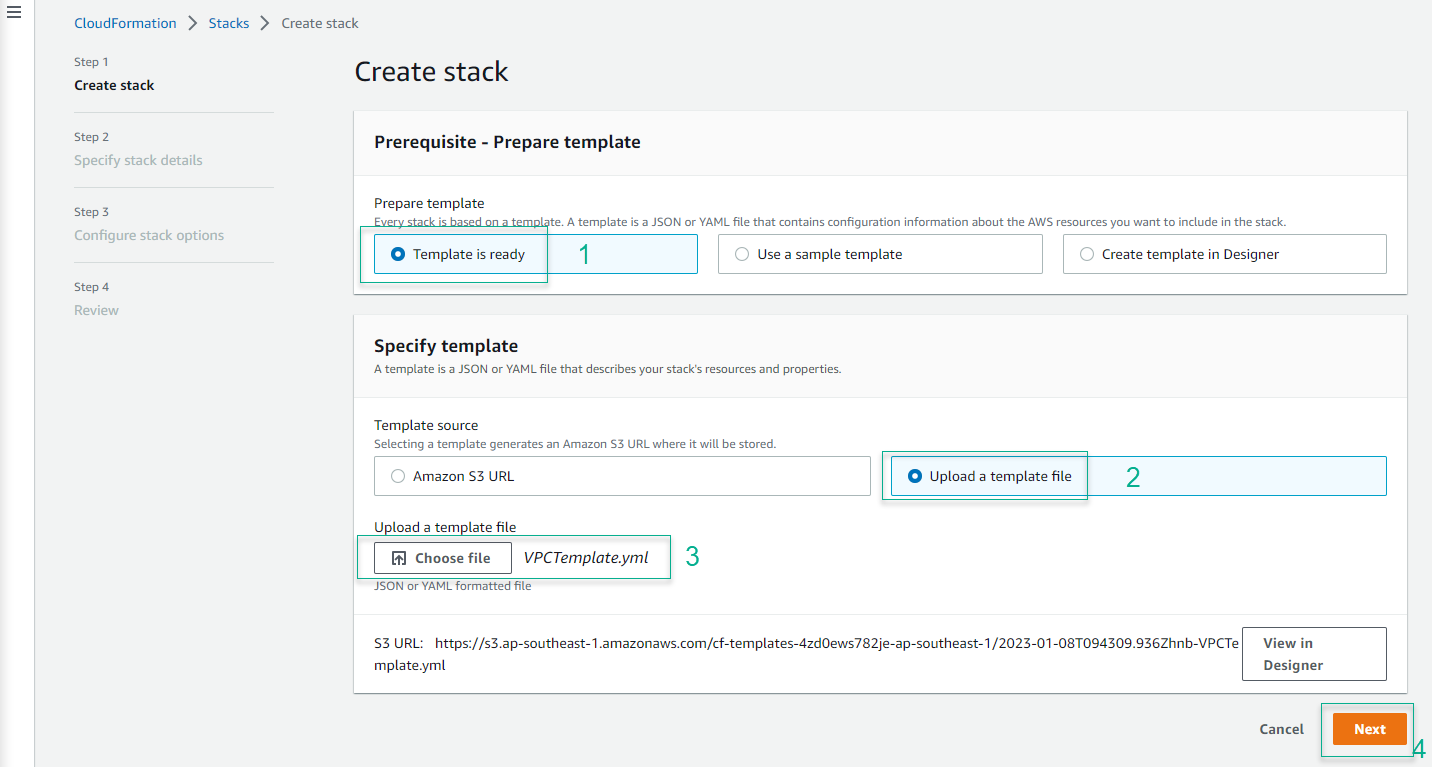

- In the Create stack page select the following parameters and select Next:
- Prerequisite - Prepare template:
- Prerequisite template: Template is ready
- Specify template:
- Template source*: Upload a template file
- Select Choose file and then select the VPCTempalte.yaml file that has just been download.
- Select Next
- Prerequisite - Prepare template:

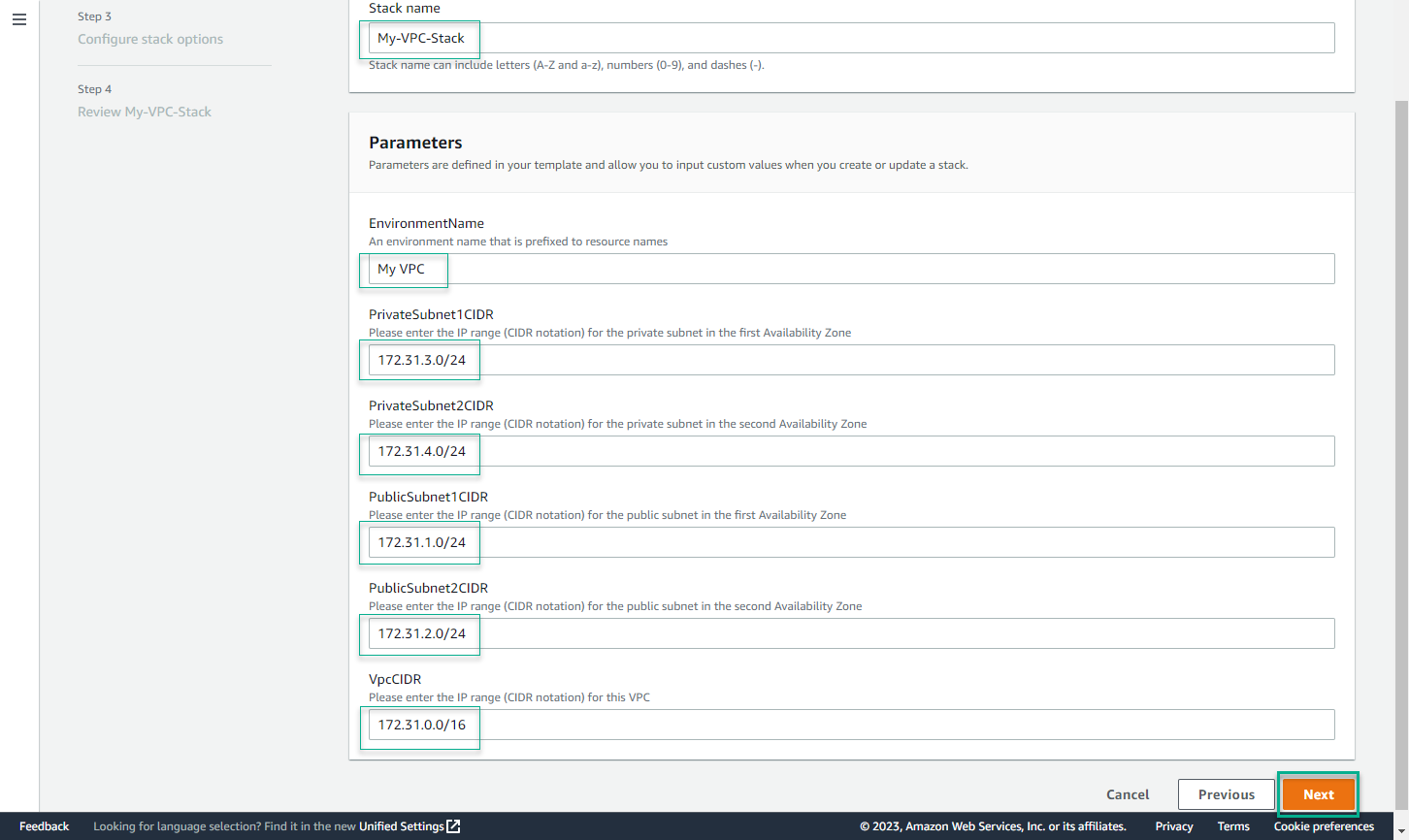

- In the Specify stack details page, you will enter the required parameters in VPCTempalte.yaml as follows:
- Stack name:
- Stack name:
My-VPC-Stack
- Stack name:
- Parameters:
- EnvironmentName:
My VPC - PrivateSubnet1CIDR:
172.31.3.0/24 - PrivateSubnet2CIDR:
172.31.4.0/24 - PublicSubnet1CIDR:
172.31.1.0/24 - PublicSubnet2CIDR:
172.31.2.0/24 - VpcCIDR:
172.31.0.0/16
- EnvironmentName:
- Check and select Next
- Stack name:

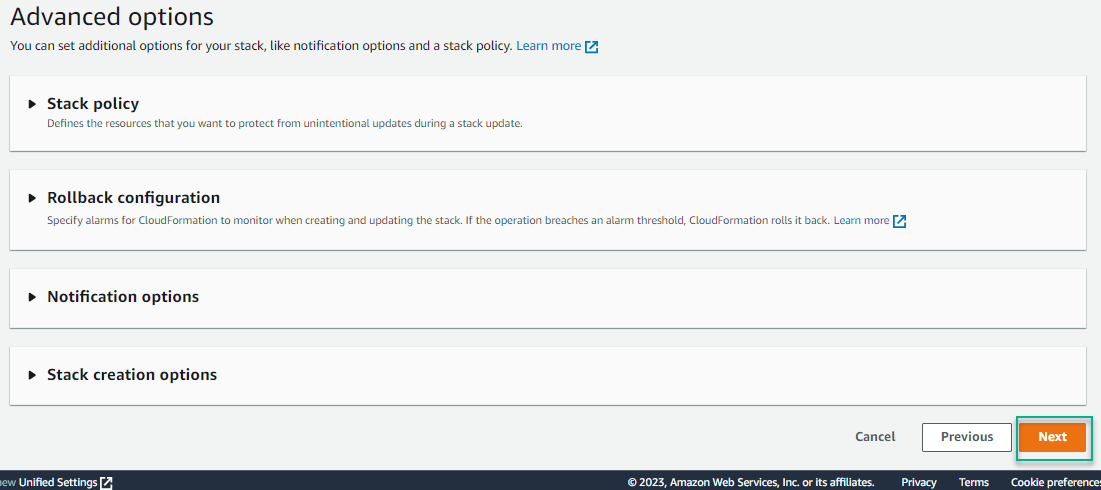

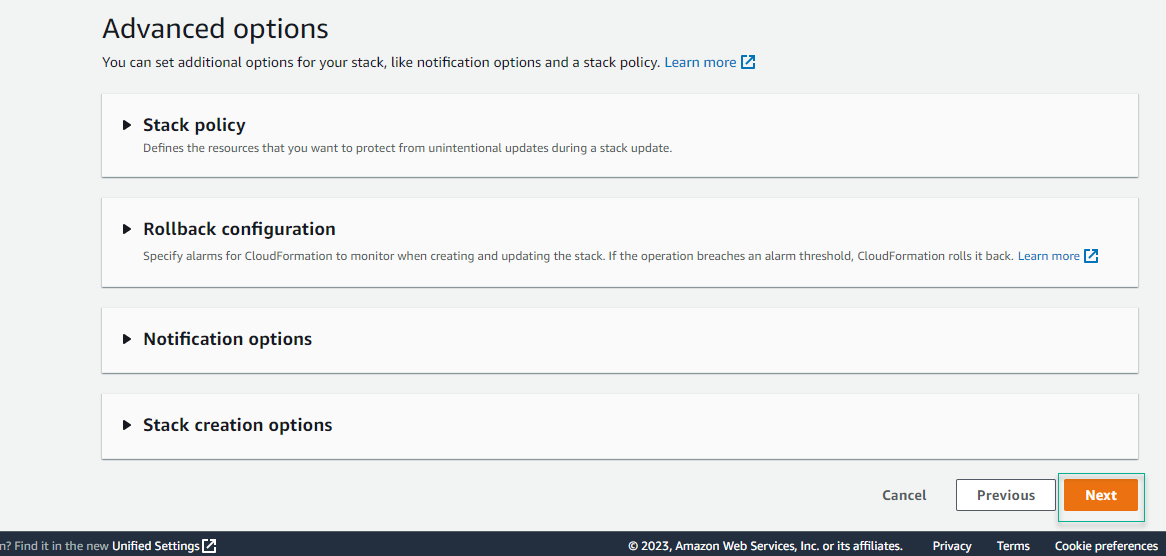

- On the Configure stack options page, select Next

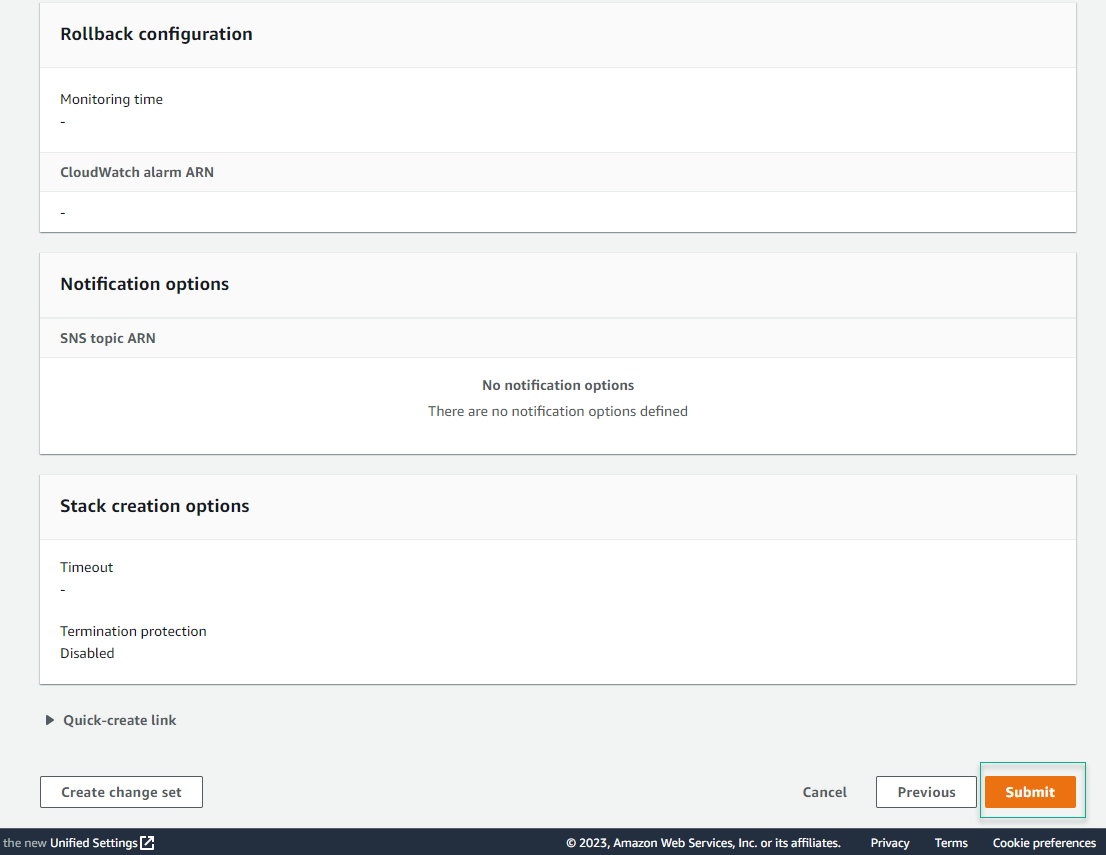

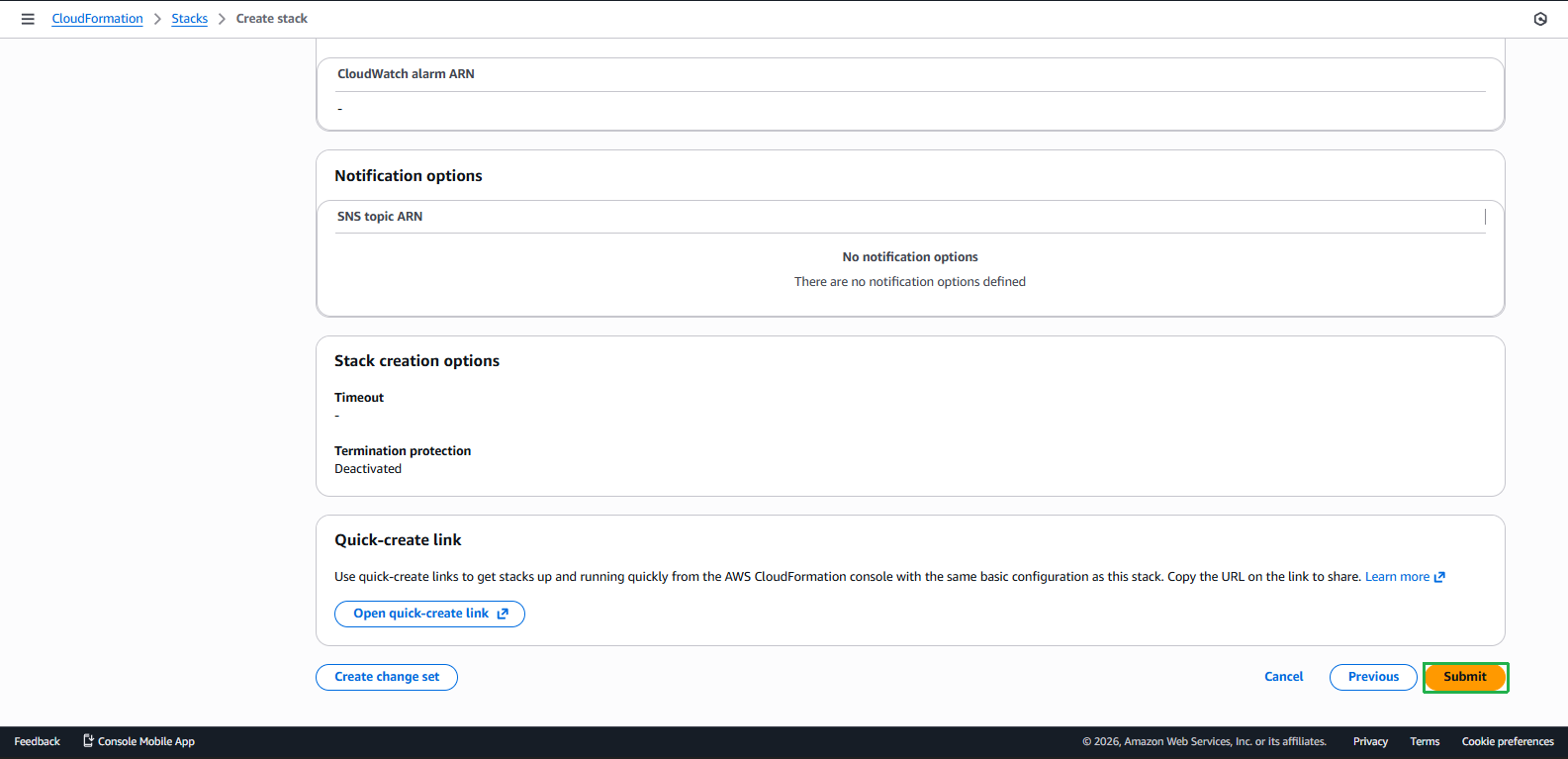

- On the Review page, check and select Submit at the bottom of the page.

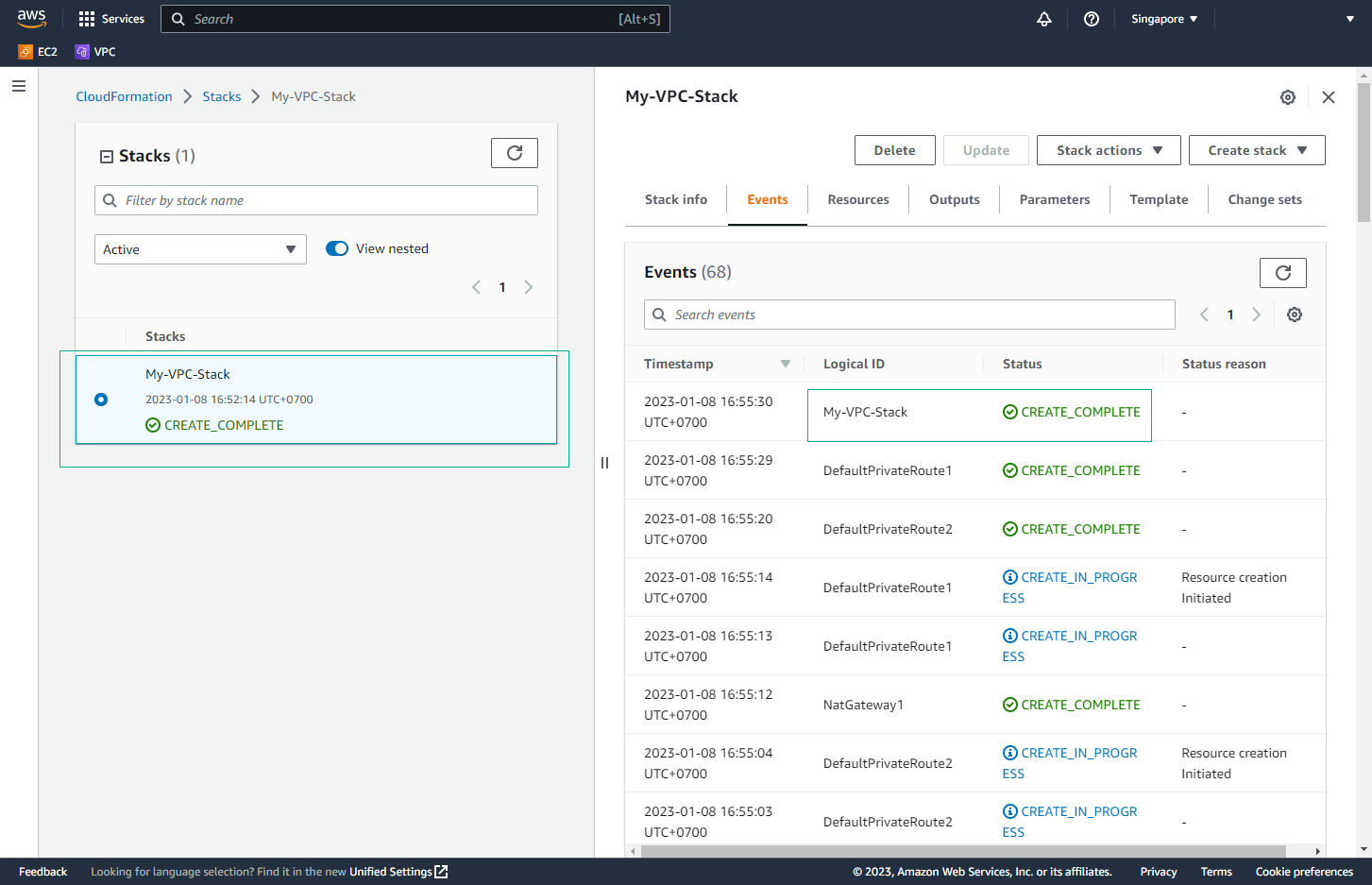

- Wait 10 minutes, Stack created successfully.

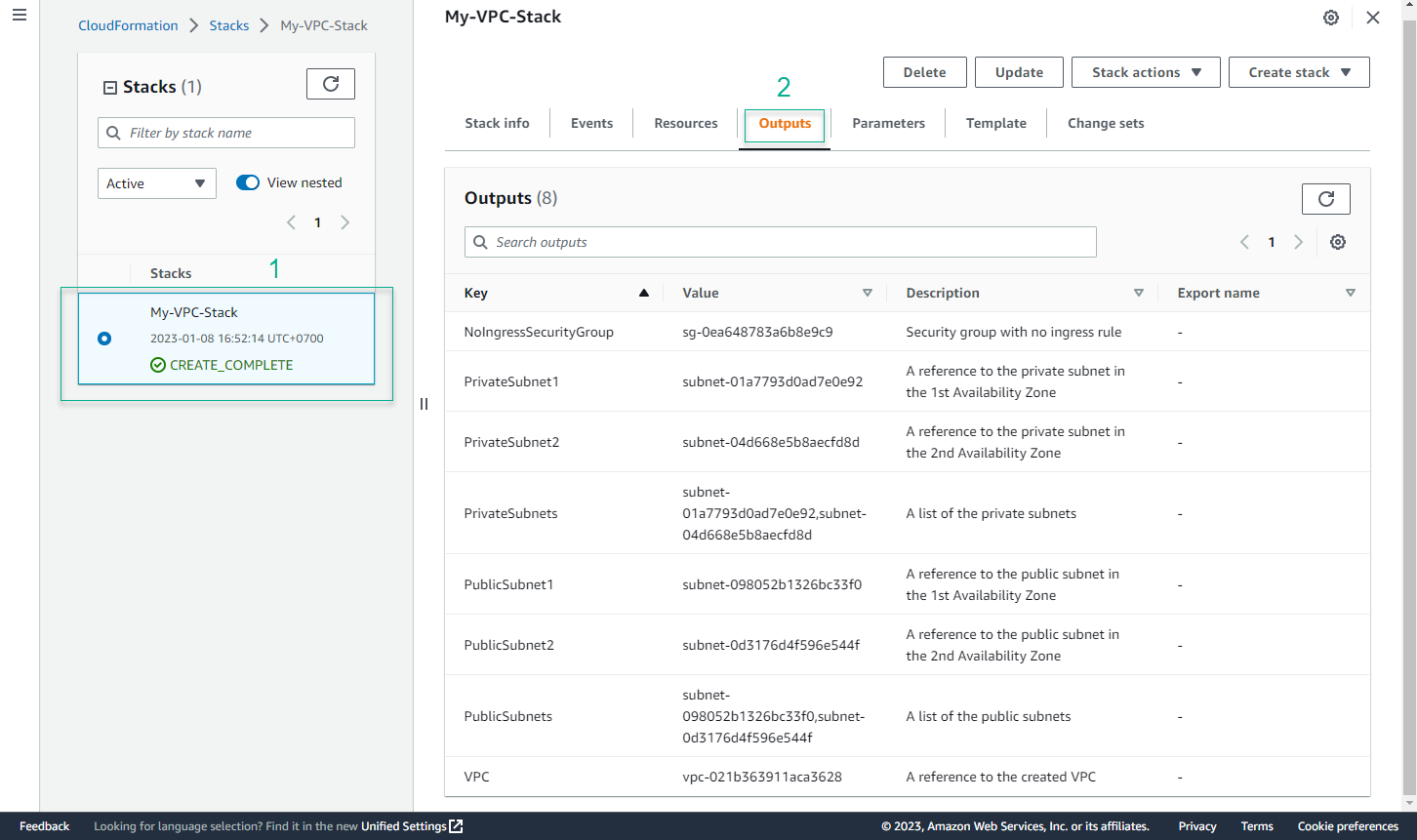

- View Output of the newly created Stack.
- Repeat steps to create HG VPC

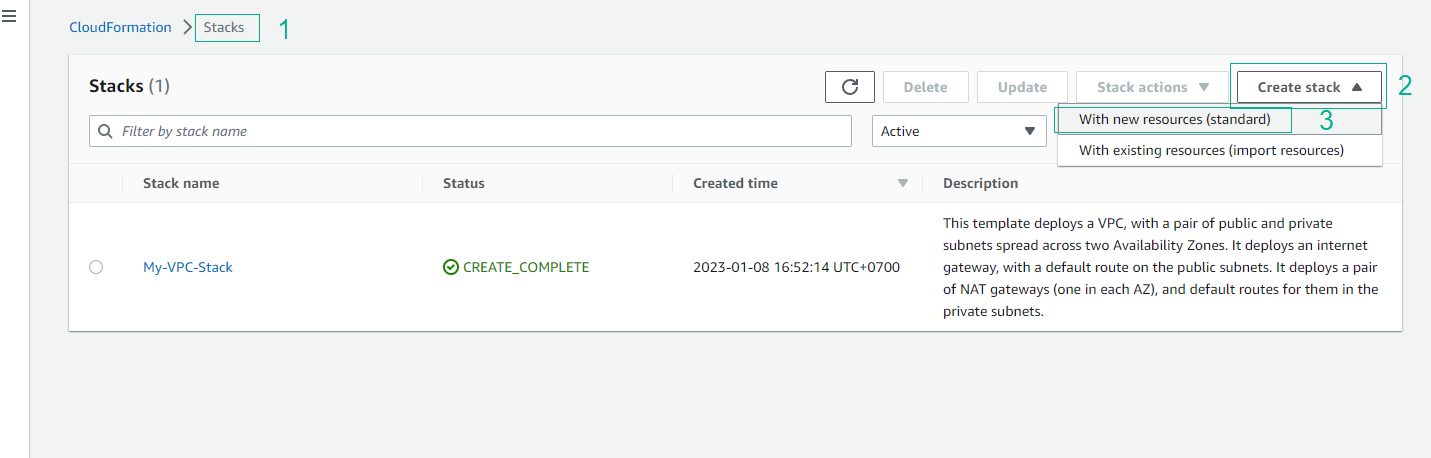

- In the left sidebar, select Stacks. Then select Create stack and select With new resources (standard).
- In the Create stack page select the following parameters and select Next:
- Prerequisite - Prepare template:
- Prerequisite template: Template is ready
- Specify template:
- Template source: Upload a template file
- Select Choose file and then select the VPCTempalte.yaml file that has just been created.
-

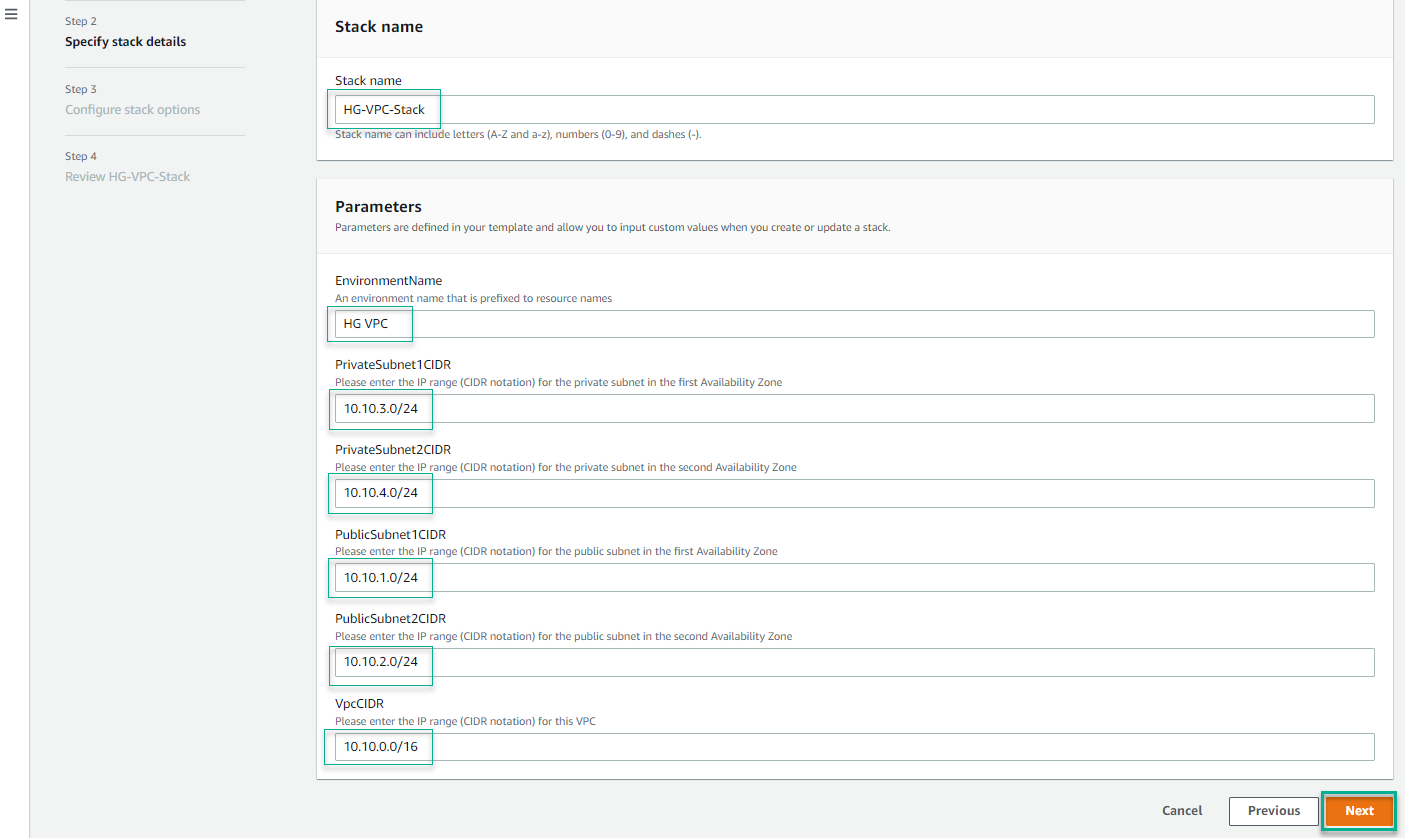

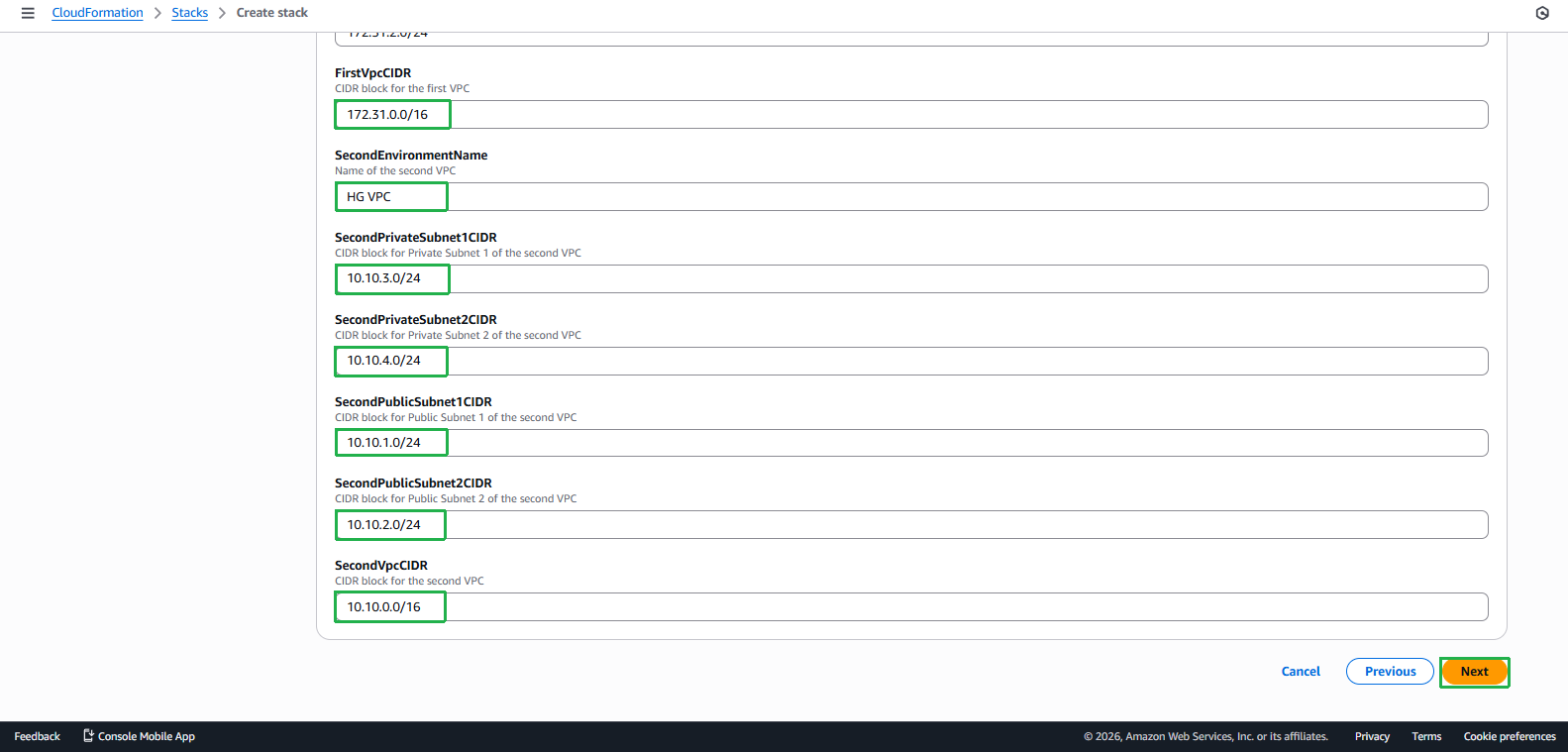

Stack name:
- Stack name:
HG-VPC-Stack - Parameters:
- EnvironmentName:
HG VPC - PrivateSubnet1CIDR:
10.10.3.0/24 - PrivateSubnet2CIDR:
10.10.4.0/24 - PublicSubnet1CIDR:
10.10.1.0/24 - PublicSubnet2CIDR:
10.10.2.0/24 - VpcCIDR:
10.10.0.0/16
- EnvironmentName:
- Stack name:
- On the Configure stack options page, select Next

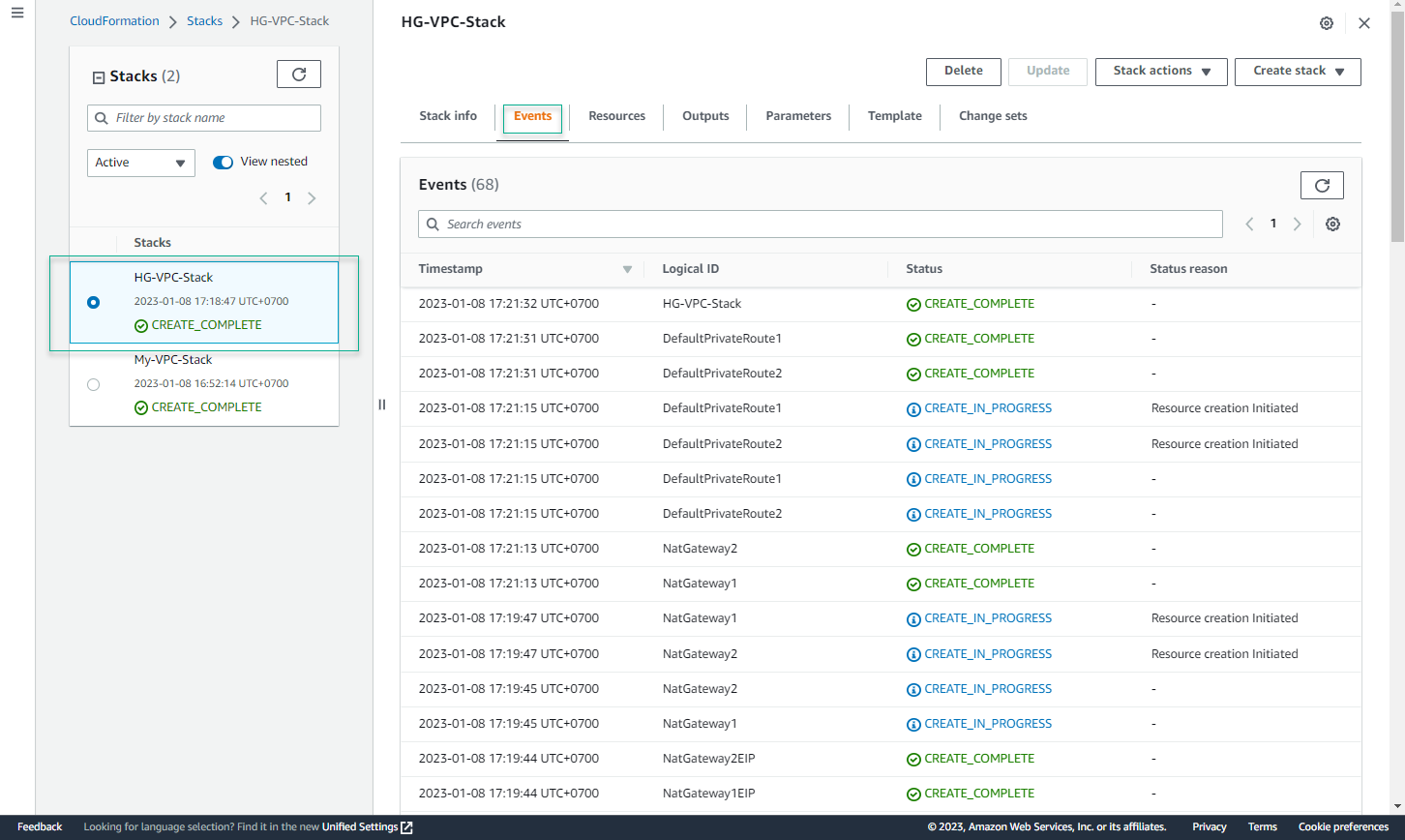

- On the Review page, check and select Submit at the bottom of the page. Wait 10 minutes after completing the stack creation.

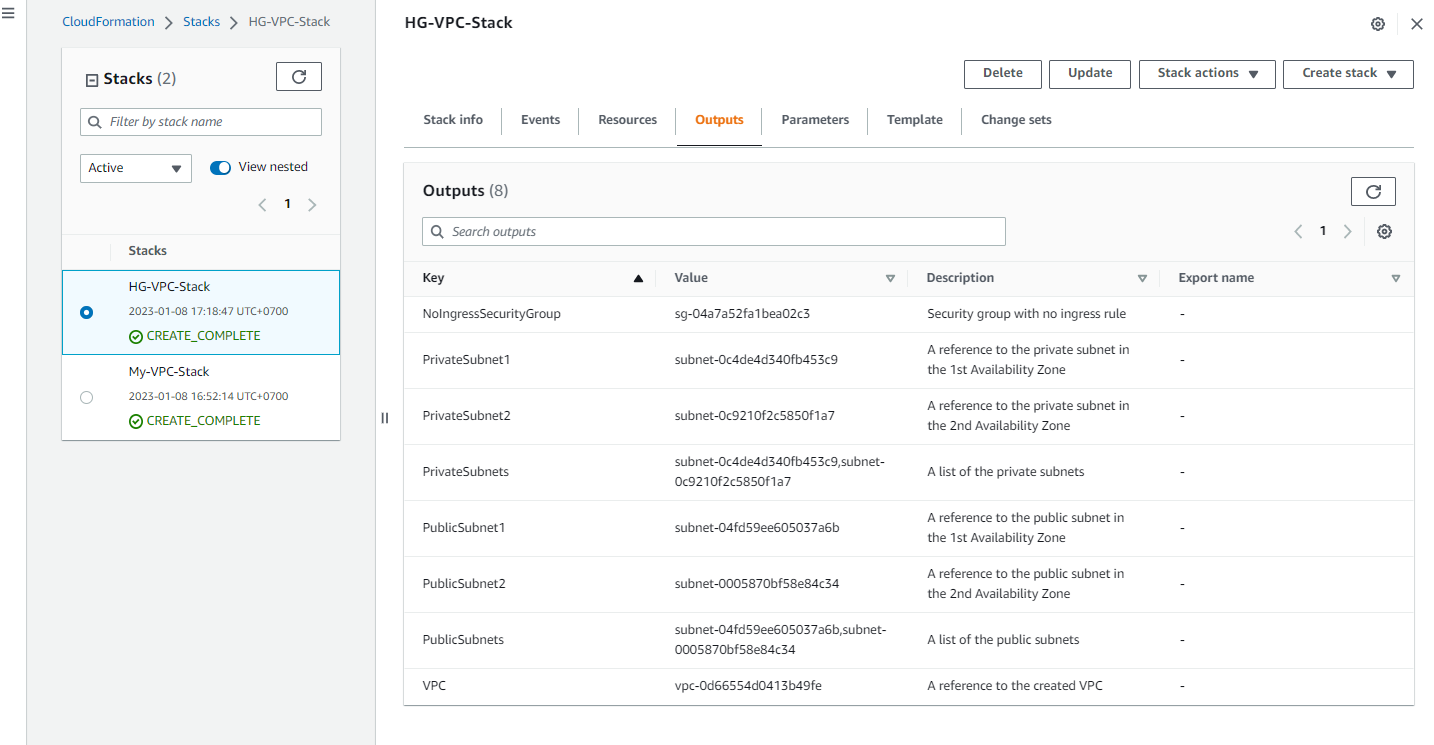

- View Output stack just created.
